自動包裝碼垛系統 Automatic Packing and Palletizing System

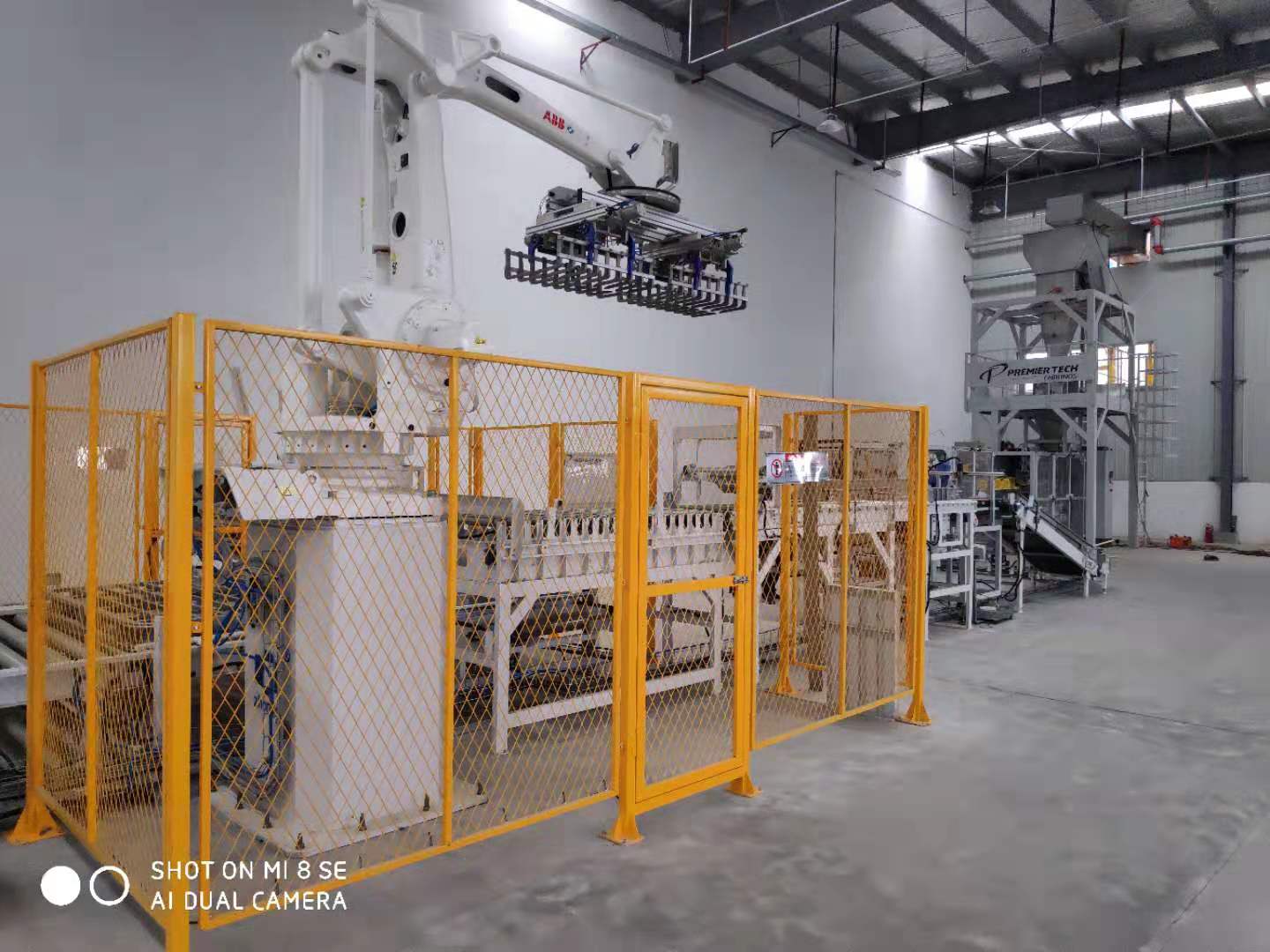

碼垛機械人 Palletizing Robot

碼垛配套

1. 機器人底座：根據機器人底盤尺寸制作。

2. 碼垛控制系統：自動化控制系統，整線獨立 PLC 控制，獨立配電柜，觸摸屏操作及顯示，可實時查看工作狀態，異常狀態可在觸摸屏上顯示。

3. 倒包機：氣動推倒，平躺進入皮帶輸送機。

4. 大袋爬坡輸送機：碳鋼噴塑制作，草紋皮帶設計，把大包裝提升到碼垛手方便抓取高度。

5. 檢重秤及自動剔除：采用最先進高速數字處理技術，實現高速，穩定檢測。

6. 斜輸送機

7. 轉彎輸送機

8. 方管整平輸送機

9. 過渡輸送機

10. 待抓位輸送機

11. 托盤庫

12. 托盤送出小車

13. 安全護欄及報警提示功能

Palletizing System

1. Robot Base: Custom fabricated according to the dimensions of the robot pedestal.

2. Palletizing Control System: Automated control system with independent PLC control for the entire line, dedicated electrical cabinet, and touchscreen operation. Real-time operating status can be monitored, and abnormal conditions are displayed on the touchscreen.

3. Bag Turning Machine: Pneumatic bag tipping system that lays bags flat before transferring them onto the conveyor.

4. Large Bag Inclined Conveyor: Made of powder-coated carbon steel with a rough-surface belt design, lifting large bags to a height suitable for robotic gripping.

5. Checkweigher with Automatic Rejection: Utilizes advanced high-speed digital processing technology for fast and stable weight inspection.

6. Inclined Conveyor

7. Turning Conveyor

8. Square-Tube Alignment Conveyor

9. Transition Conveyor

10. Robot Infeed Conveyor

11. Pallet Magazine

12. Pallet Transfer Cart

13.Safety guarding and alarm notification system included.
